Preliminary Procedure

1. Remove the front seat. Refer to Driver and Passenger Seat Replacement .
2. Remove the front seat back cushion cover and pad. Refer to Seat Back Cover and Pad Replacement .

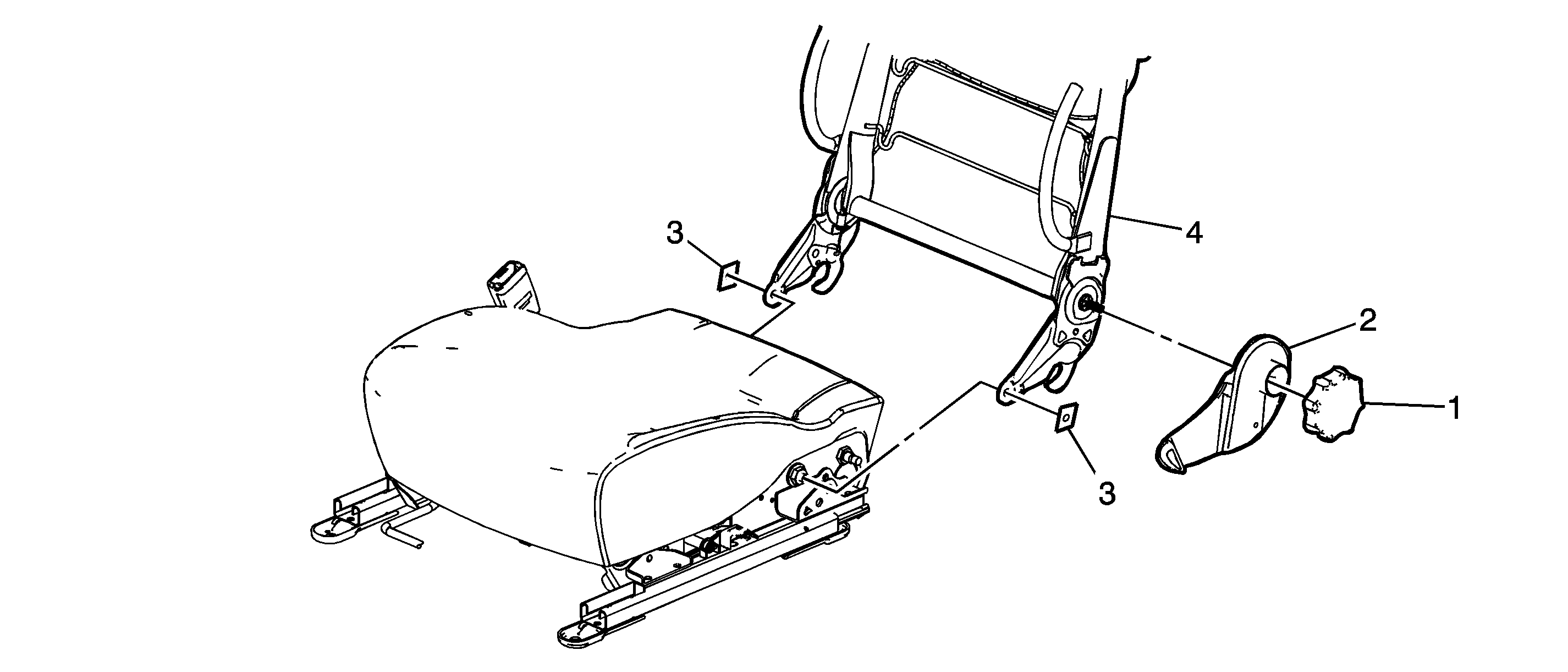

1

Handle, Seat Recliner

Tip
Pull the handle away from the seat to remove.

2

Cover, Seat Recliner Outer

Refer to Front Seat Back Recliner Outer Trim Panel Replacement .

3

Retainer Clip, Seat Back Cushion Frame (Qty: 2)

4

Frame Assembly, Seat Back Cushion

Tip
Tilt the seat back forward and pull the front part of the frame away from the pivot studs to remove.
