Interior Lights Schematics. Chevrolet Express 2002

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2002 🢒 Express 🢒 Body and Accessories 🢒 Lighting Systems 🢒 Interior Lights Schematics

Figure 1:	PWR ACCY, GAUGES and PARK LPS Fuses Master Electrical Component List Interior Lighting Systems Description and Operation Underhood Lamp, Power Window and Lock Switch Illumination Ignition A, Ignition B Fuses, and Ignition Switch Lighting and Battery Fuses Power Accessory Fuse Gages Fuse ILLUM and PARK LPS Fuses G201 Sunshade, Ashtray and IP Compartment Lamps Underhood Lamp, Power Window and Lock Switch Illumination Underhood Lamp, Power Window and Lock Switch Illumination

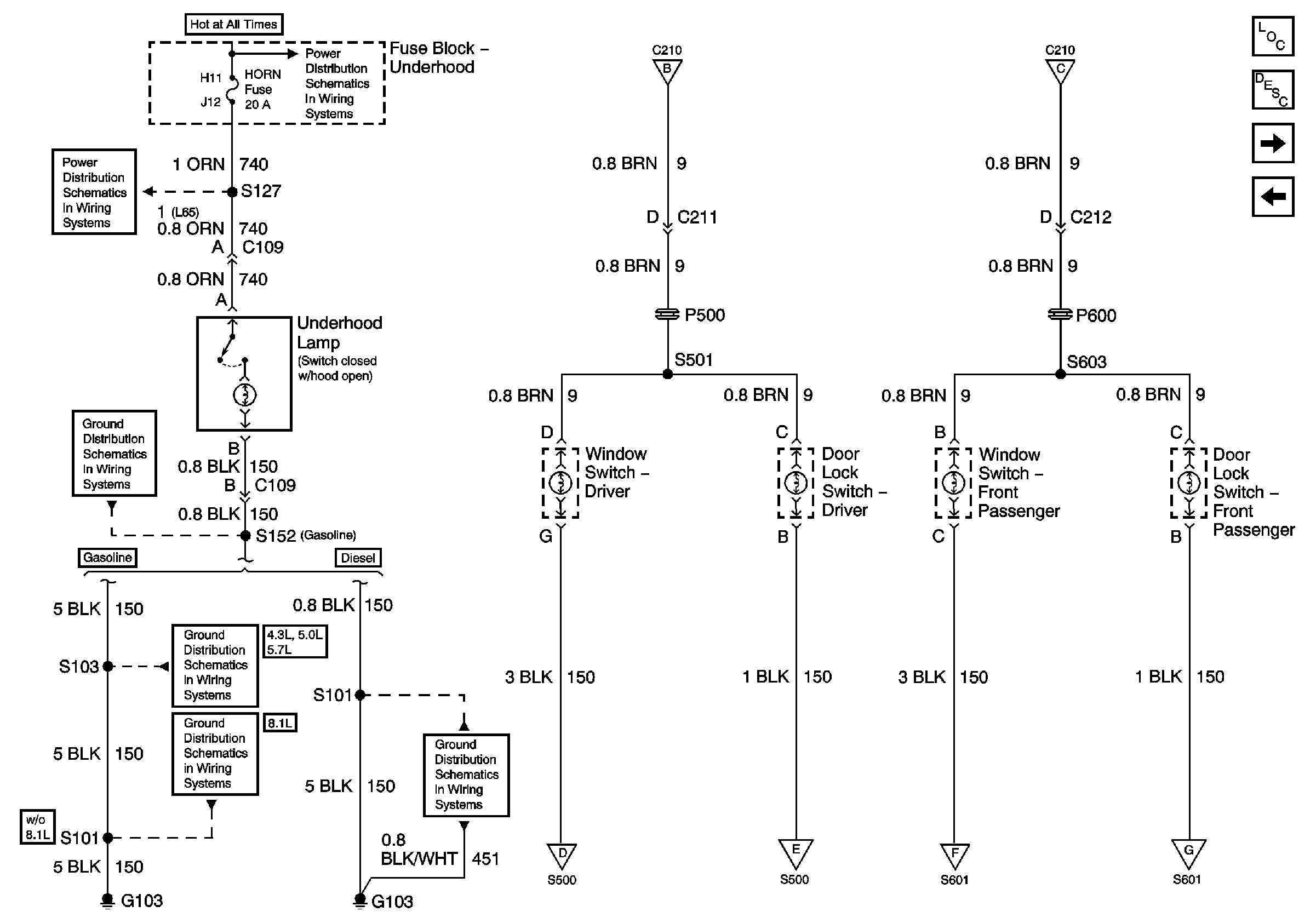

Figure 2:	Underhood Lamp, Power Window and Lock Switch Illumination Master Electrical Component List Interior Lighting Systems Description and Operation CTSY Fuse PWR ACCY, GAUGES and PARK LPS Fuses ECM B, Horn, and A/C Fuses Battery, Auxiliary Battery, and Underhood Fuse/Relay Center PWR ACCY, GAUGES and PARK LPS Fuses PWR ACCY, GAUGES and PARK LPS Fuses Components through S152 to G103 - Gasoline Engines G103 - 4.3L, 5.0L, and 5.7L Engines G103 - 8.1L Engine G103 - 6.5L Diesel Engine Door Jamb Switches Door Jamb Switches Door Jamb Switches Door Jamb Switches

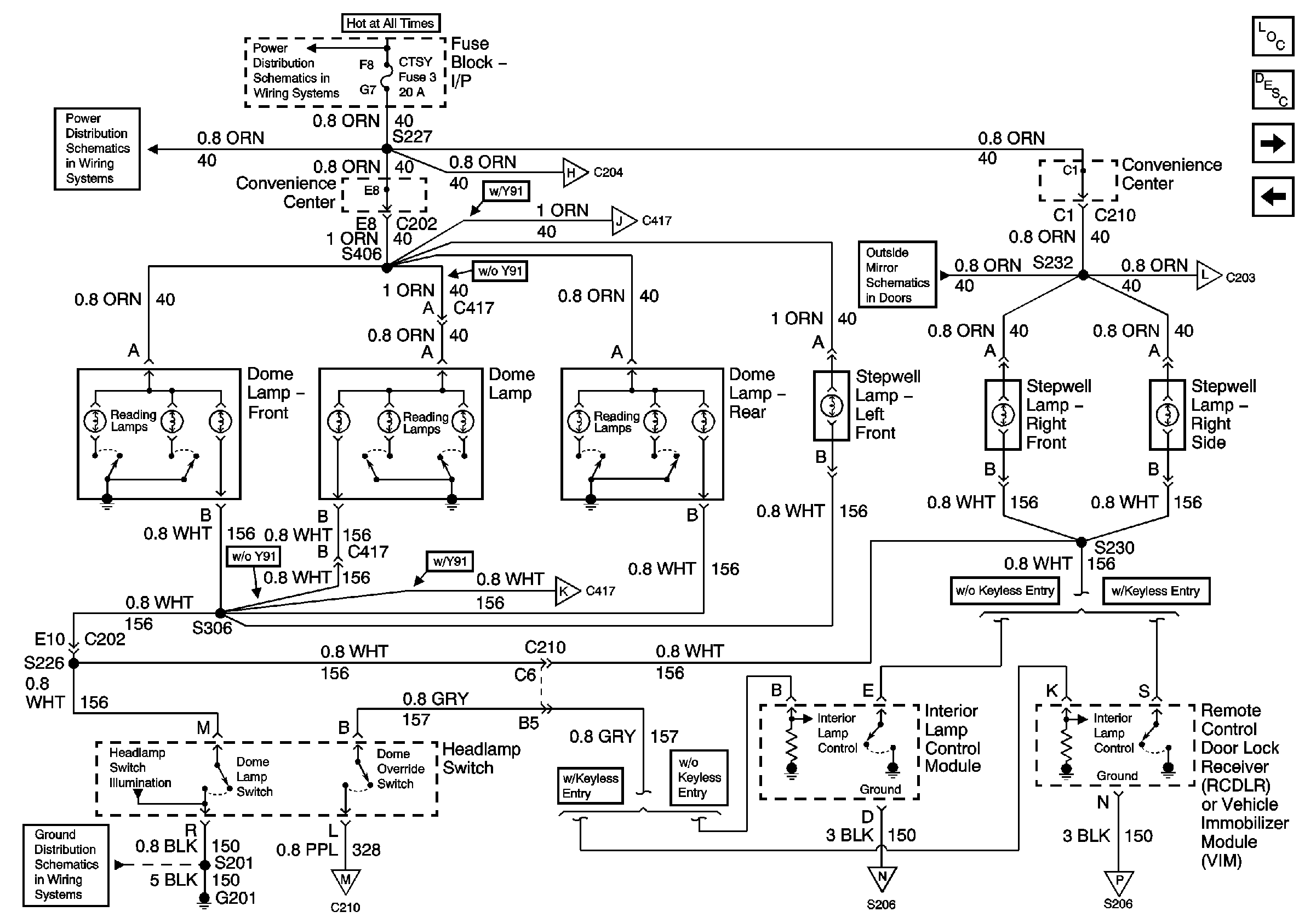

Figure 3:	CTSY Fuse Master Electrical Component List Interior Lighting Systems Description and Operation Dome and Reading Lamps with Y91 Underhood Lamp, Power Window and Lock Switch Illumination Courtesy, Air Bags, and Turn Backup Fuses Lighting and Battery Fuses Sunshade, Ashtray and IP Compartment Lamps Dome and Reading Lamps with Y91 CTSY Fuse, G200, G201 Sunshade, Ashtray and IP Compartment Lamps G201 Door Jamb Switches Dome and Reading Lamps with Y91 Sunshade, Ashtray and IP Compartment Lamps Sunshade, Ashtray and IP Compartment Lamps

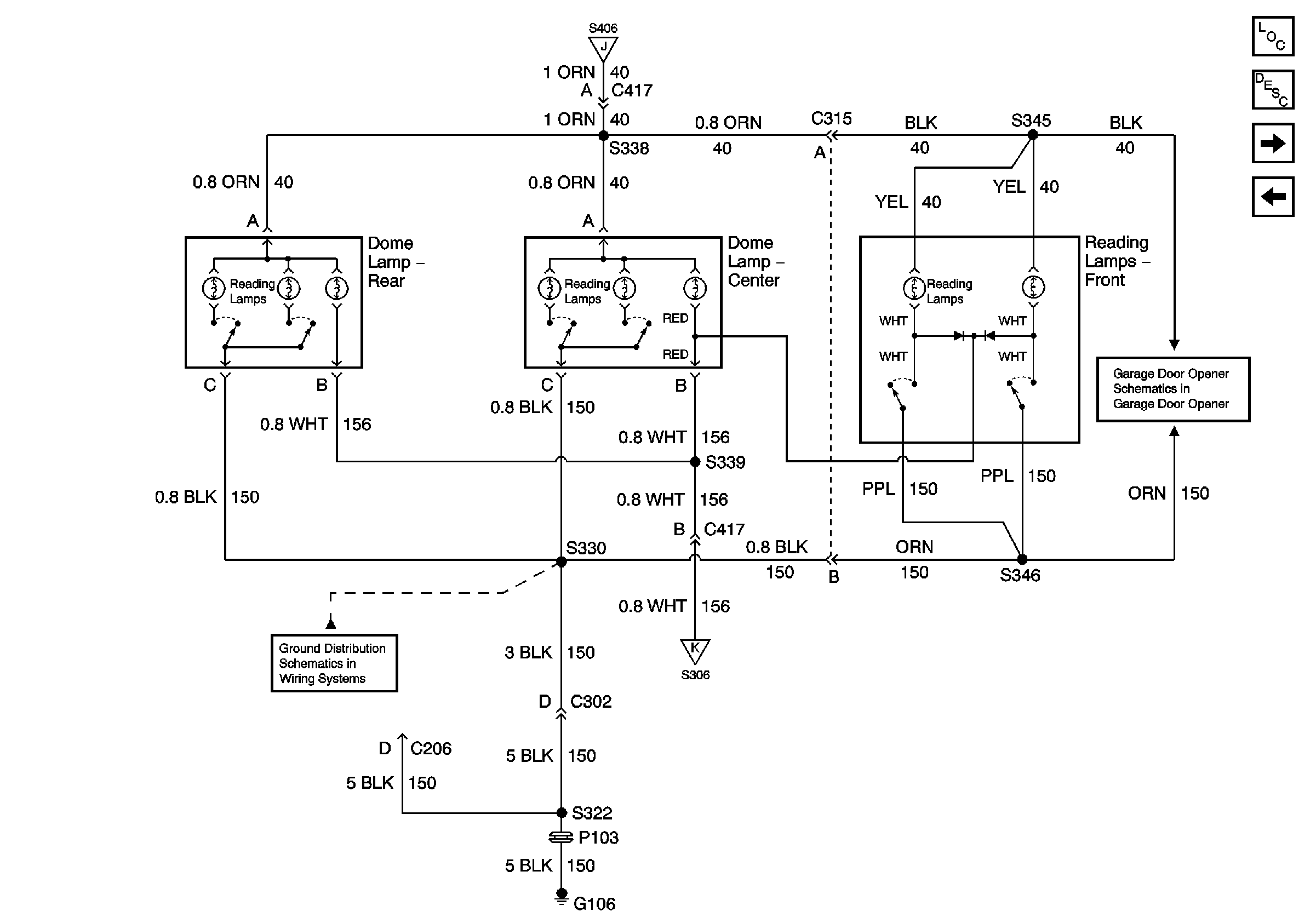

Figure 4:	Dome and Reading Lamps with Y91 Master Electrical Component List Interior Lighting Systems Description and Operation Sunshade, Ashtray and IP Compartment Lamps CTSY Fuse CTSY Fuse Garage Door Opener G106 with Y91 CTSY Fuse

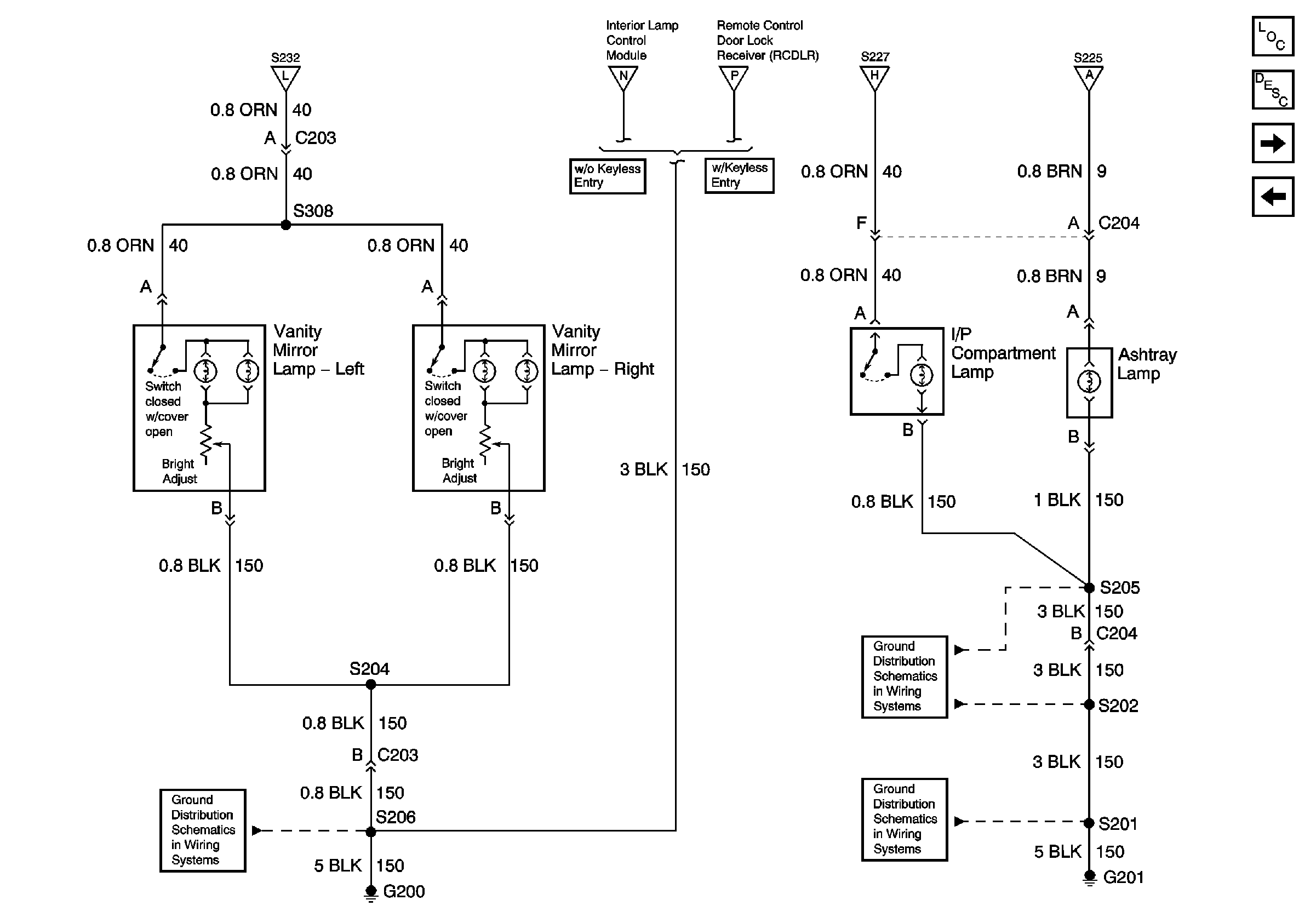

Figure 5:	Sunshade, Ashtray and IP Compartment Lamps Master Electrical Component List Interior Lighting Systems Description and Operation Door Jamb Switches Dome and Reading Lamps with Y91 CTSY Fuse CTSY Fuse CTSY Fuse CTSY Fuse PWR ACCY, GAUGES and PARK LPS Fuses G200 Components through S202 and S205 to G201 G201

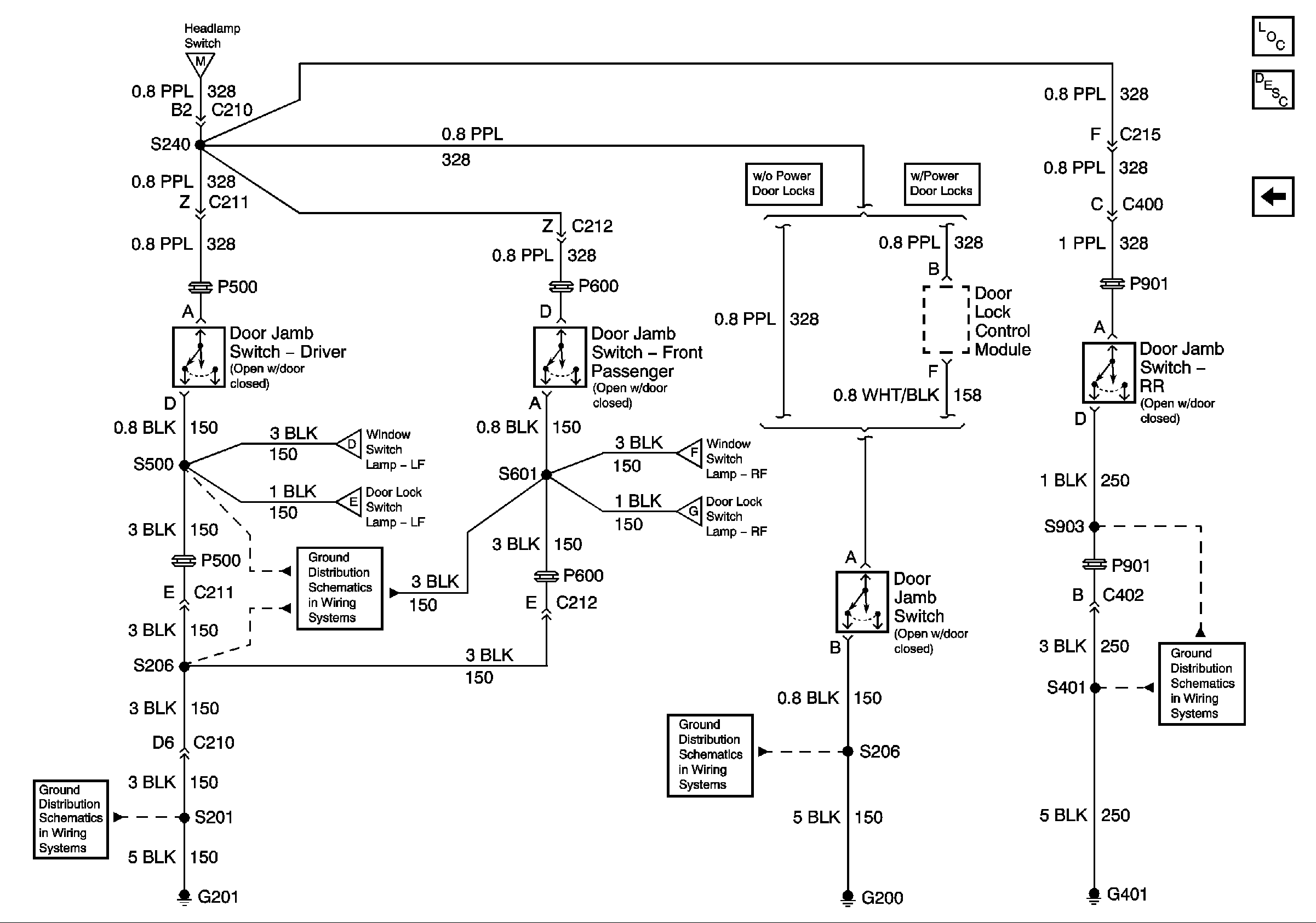

Figure 6:	Door Jamb Switches Master Electrical Component List Interior Lighting Systems Description and Operation Sunshade, Ashtray and IP Compartment Lamps CTSY Fuse G201 G200 Underhood Lamp, Power Window and Lock Switch Illumination Underhood Lamp, Power Window and Lock Switch Illumination Underhood Lamp, Power Window and Lock Switch Illumination Underhood Lamp, Power Window and Lock Switch Illumination G200 G401
