Ground Distribution Schematics. Oldsmobile Achieva 1998

For 1990-2009 cars only

Makes 🢒 Oldsmobile 🢒 1998 🢒 Achieva 🢒 Body and Accessories 🢒 Wiring Systems 🢒 Ground Distribution Schematics

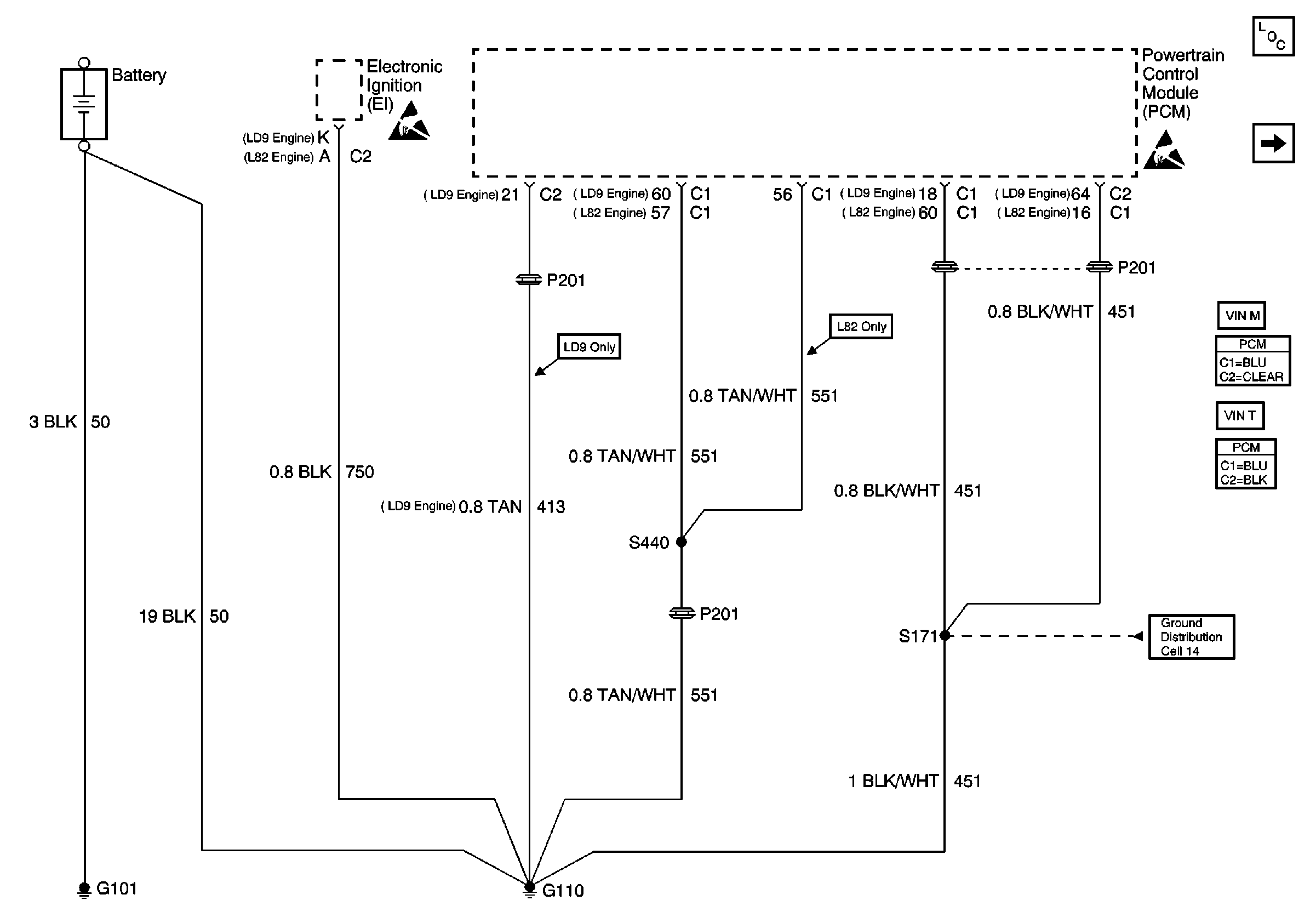

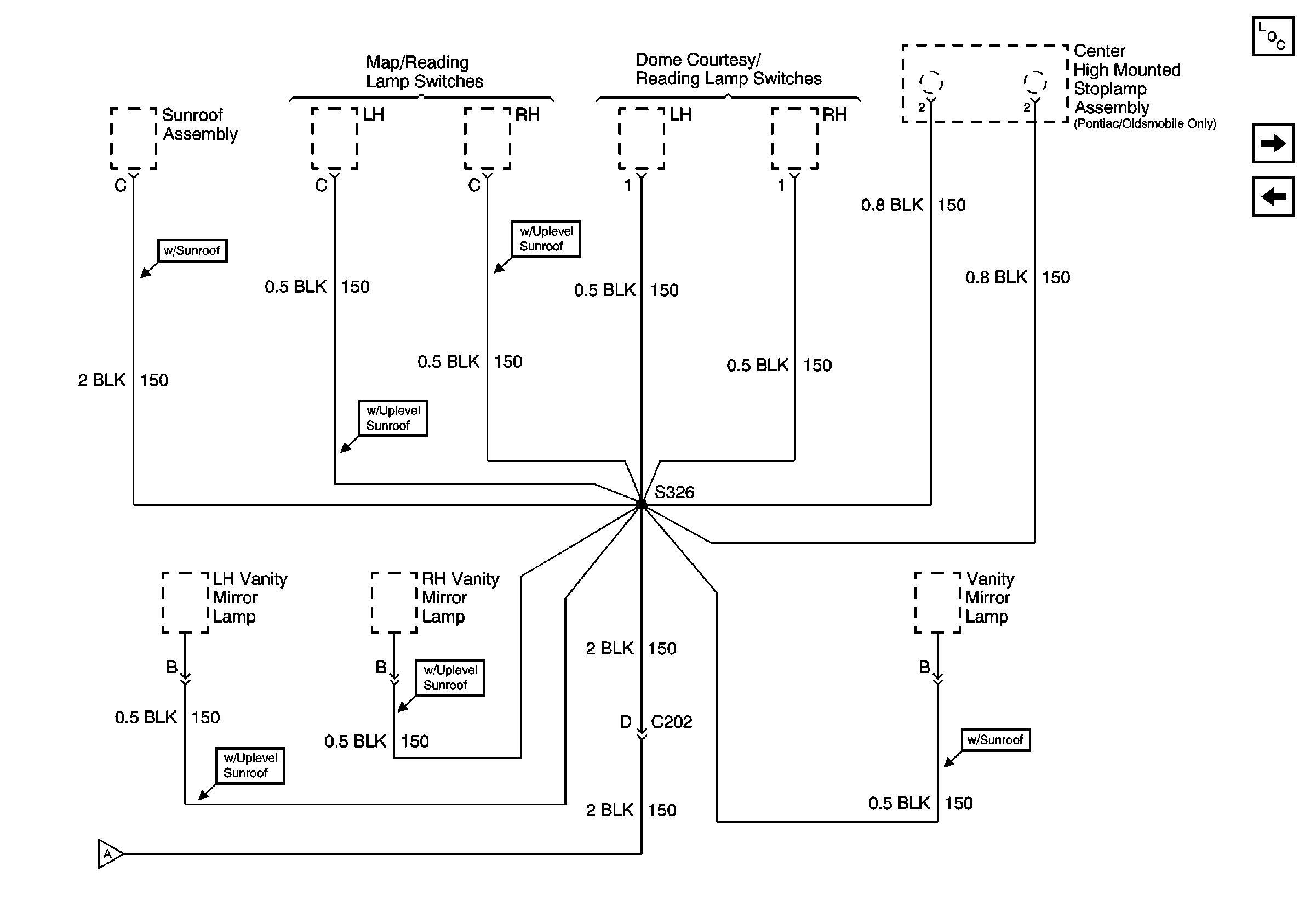

Figure 1:	Cell 14: G101 and G110 Power and Grounding Component Views Cell 14: G101 and G110 Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Ground Distribution Schematics

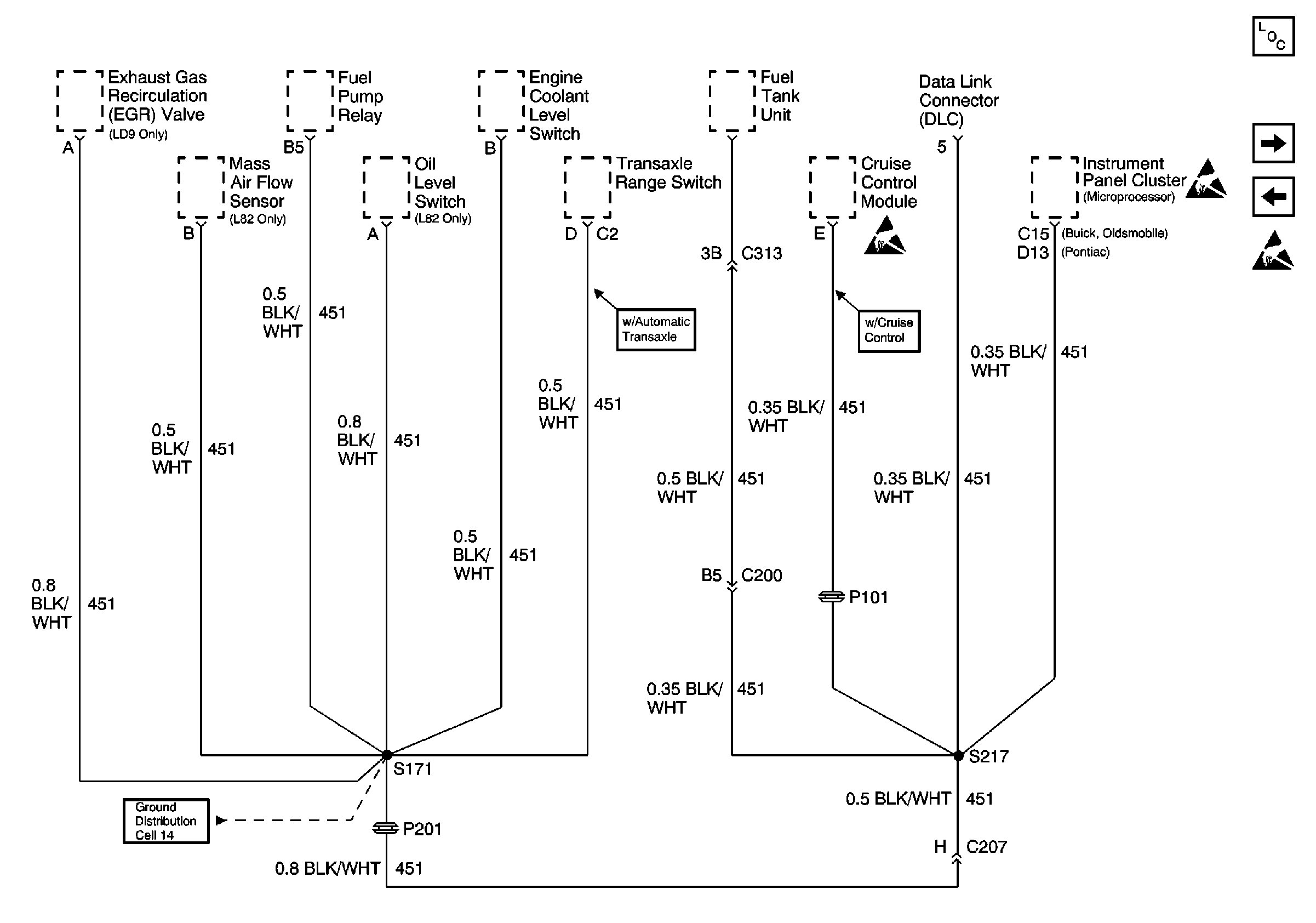

Figure 2:	Cell 14: G101 and G110 Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Cell 14: G101 and G110 Cell 14: G101 and G110 Ground Distribution Schematics Power and Grounding Component Views
Figure 3:	Cell 14: G101 and G110 Power and Grounding Component Views Cell 14: G100 and G111 Cell 14: G101 and G110

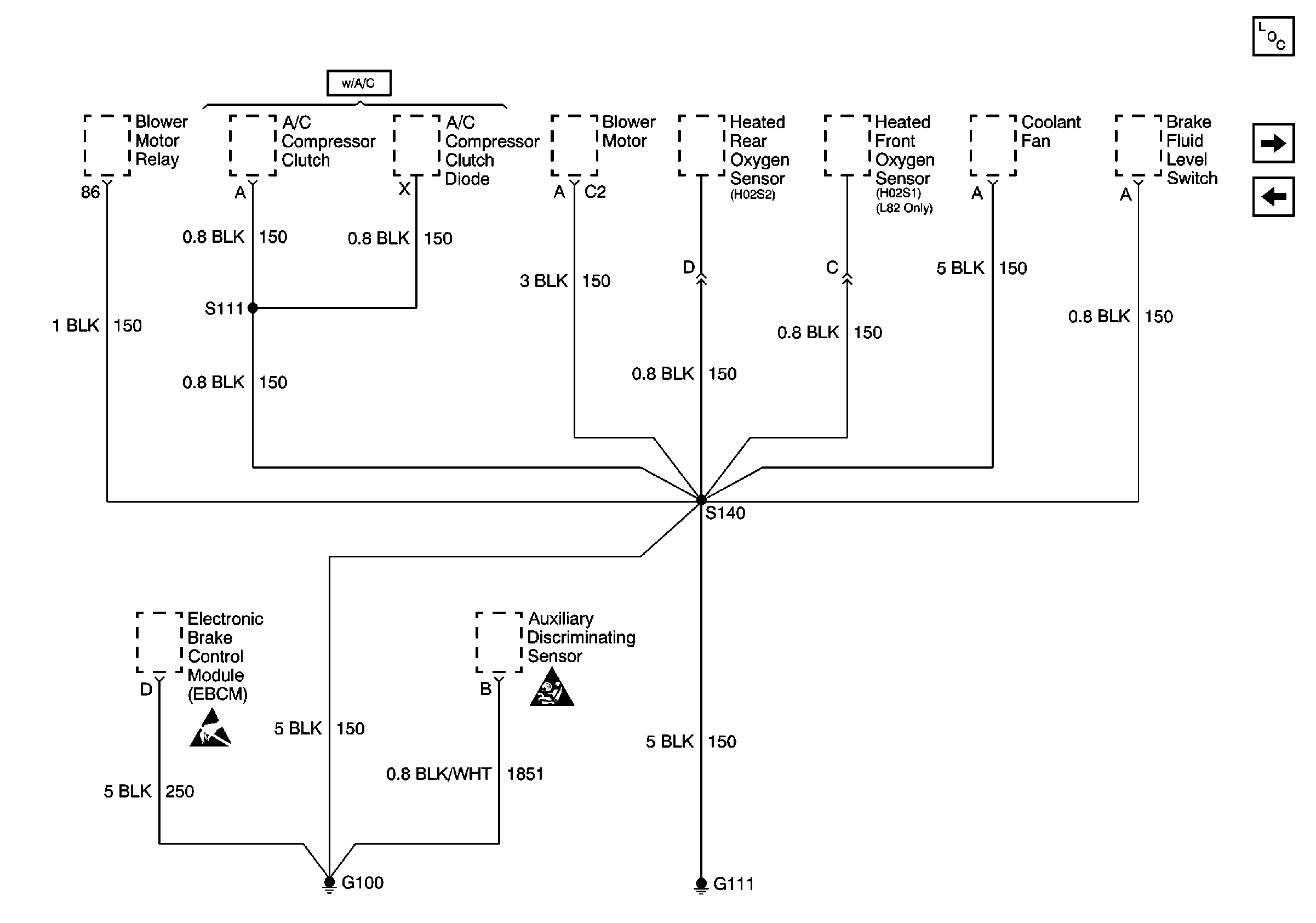

Figure 4:	Cell 14: G100 and G111 Power and Grounding Component Views Cell 14: G200 - Buick Cell 14: G101 and G110 SIR Caution Handling ESD Sensitive Parts Notice
Figure 5:	Cell 14: G200 - Buick Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Power and Grounding Component Views Cell 14: G200 and G303 - Buick Cell 14: G100 and G111

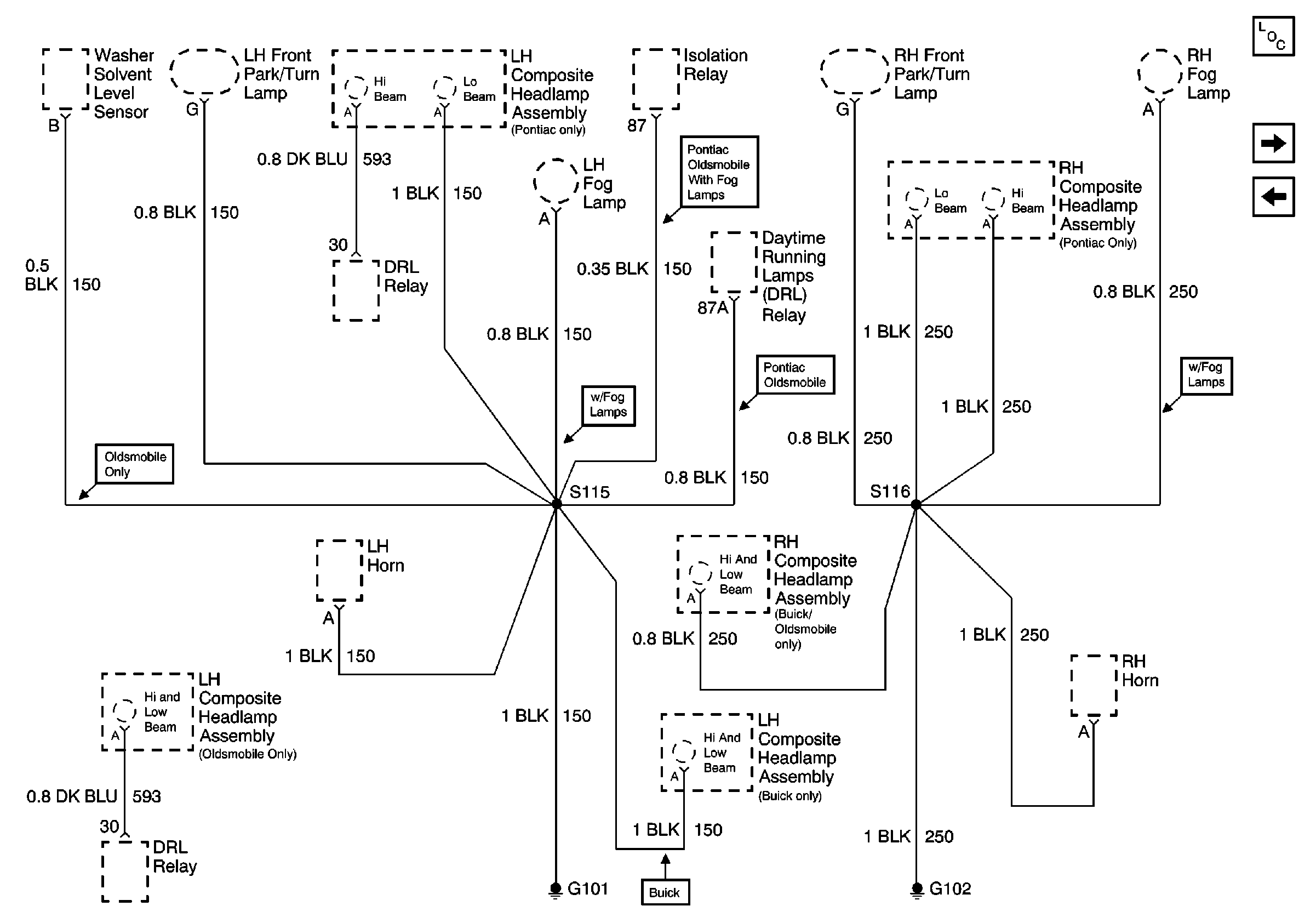

Figure 6:	Cell 14: G200 and G303 - Buick Power and Grounding Component Views Cell 14: G200 - Oldsmobile Cell 14: G200 - Buick Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice SIR Caution SIR Caution
Figure 7:	Cell 14: G200 - Oldsmobile Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Power and Grounding Component Views Cell 14: G200 and G303 - Oldsmobile Cell 14: G200 and G303 - Buick
Figure 8:	Cell 14: G200 and G303 - Oldsmobile Power and Grounding Component Views Cell 14: G200 - Pontiac Handling ESD Sensitive Parts Notice SIR Caution Cell 14: G200 - Oldsmobile Handling ESD Sensitive Parts Notice SIR Caution Handling ESD Sensitive Parts Notice
Figure 9:	Cell 14: G200 - Pontiac Power and Grounding Component Views Cell 14: G200 and G303 - Pontiac Cell 14: G200 and G303 - Oldsmobile Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 10:	Cell 14: G200 and G303 - Pontiac Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice SIR Caution SIR Caution Cell 14: G200 - Pontiac Cell 14: G302 (1 of 3) Power and Grounding Component Views
Figure 11:	Cell 14: G302 (1 of 3) Power and Grounding Component Views Cell 14: G302 (2 of 3) Cell 14: G200 and G303 - Pontiac
Figure 12:	Cell 14: G302 (2 of 3) Power and Grounding Component Views Cell 14: G302 (3 of 3) Cell 14: G302 (1 of 3)

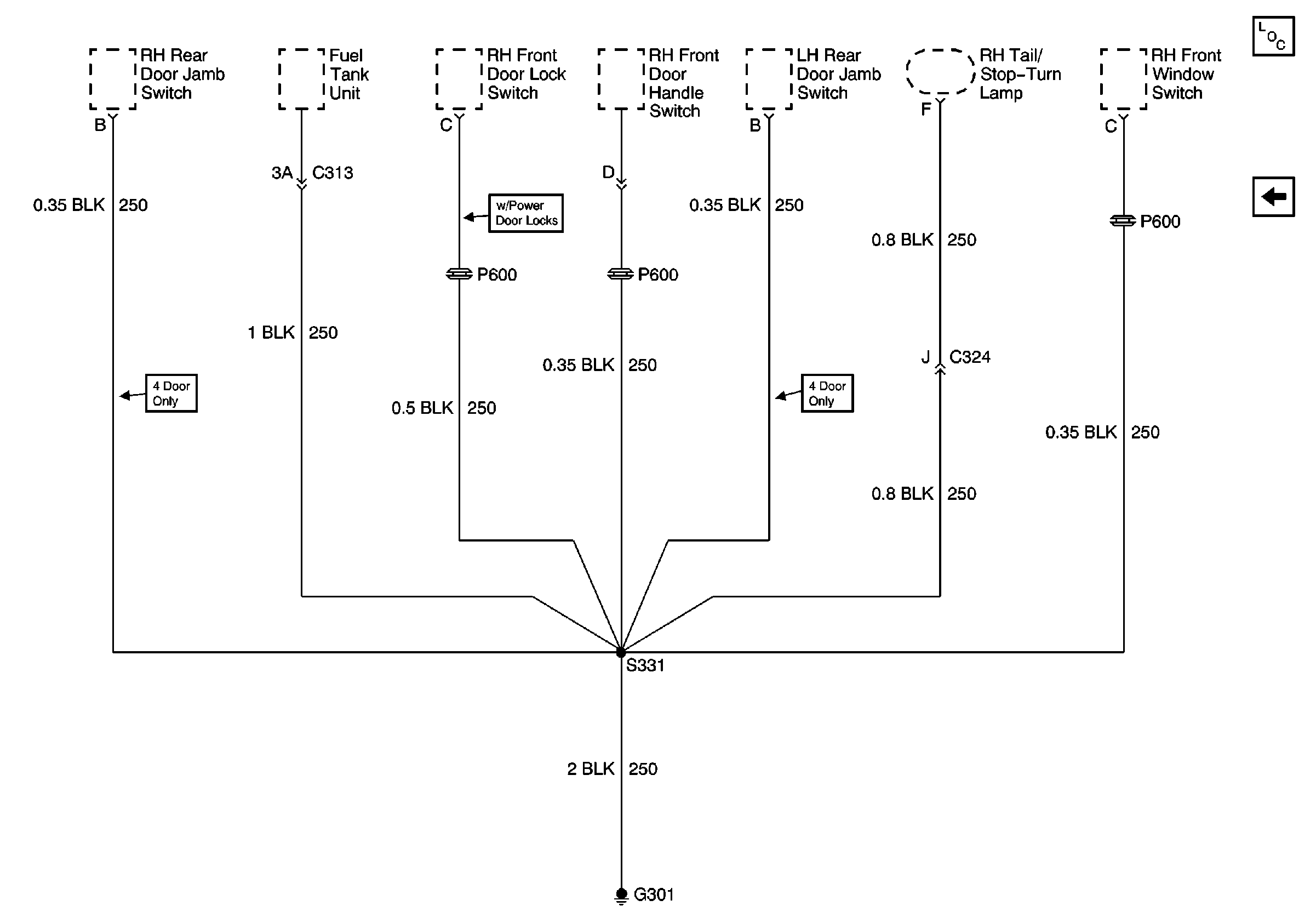

Figure 13:	Cell 14: G302 (3 of 3) Power and Grounding Component Views Cell 14: G301 Cell 14: G302 (2 of 3)
Figure 14:	Cell 14: G301 Cell 14: G302 (3 of 3) Power and Grounding Component Views
