Engine Controls Schematics. Cadillac XLR 2004

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2004 🢒 XLR 🢒 Brakes 🢒 Hydraulic Brakes 🢒 Engine Controls Schematics

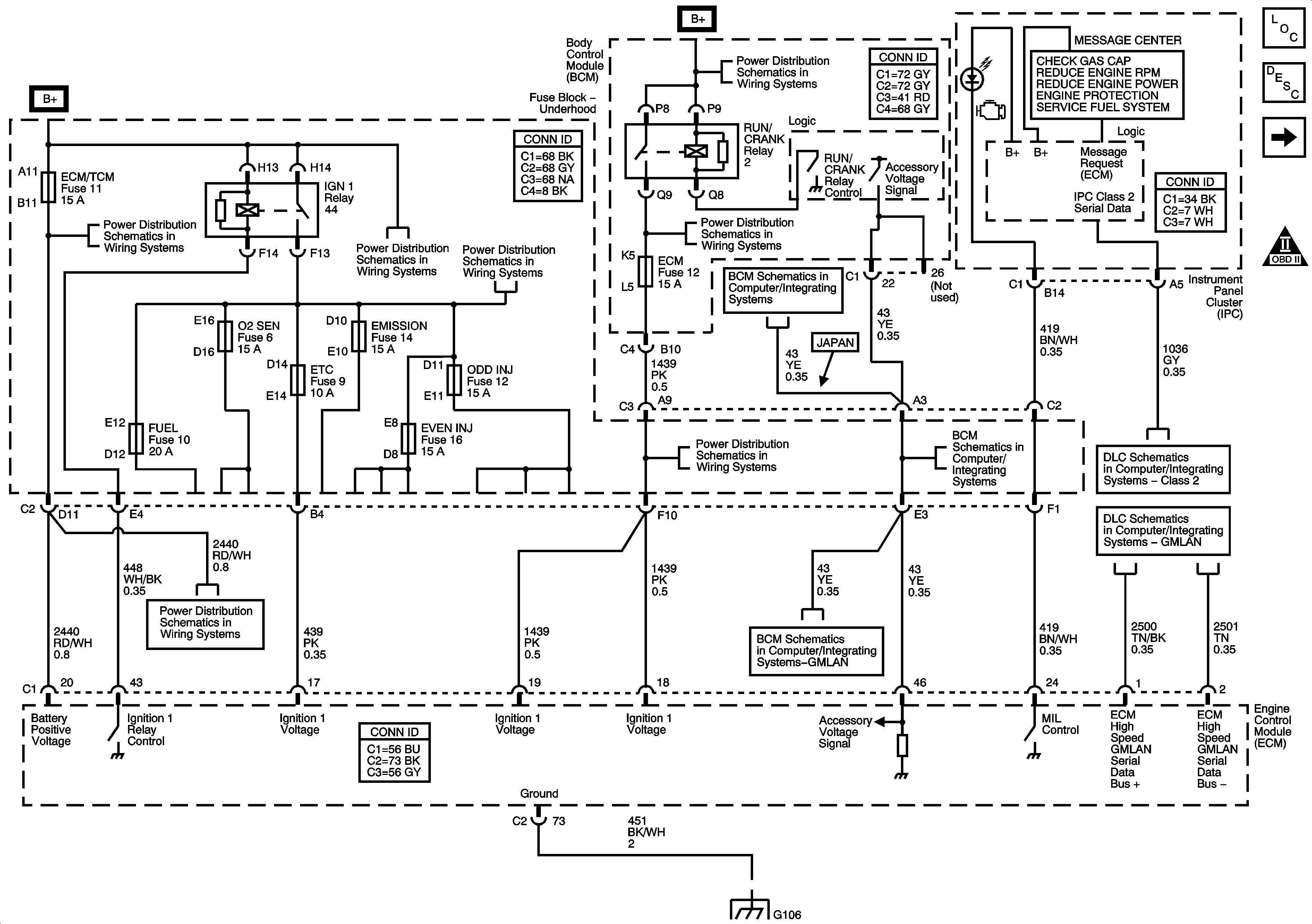

Figure 1:	DLC, Ground, MIL, and Power Master Electrical Component List Engine Control Module Description 12 Volt and 5 Volt Reference Bussing Engine Controls Schematic Icons BCM Fuses; A.C.LATCH/PK BRK B, CLUSTER, DOOR LOCKS, HVAC/PWR SND, INTERIOR LIGHTS, ISRVM/HVAC, and TUTD SW/STRG COL SW Fuse Block-Underhood Fuses; ABS, AMP, BATT2, COOLFAN, ECM/TCM, HORN, HVAC, and MRRTD BCM Fuses; ECM, GMLAN DEVICES, RPA / H/C SEAT, and SDM/PSIR SW, Fuse Block-Underhood Fuses; ABS/MRRTD, and ACC/TCM Fuse Block-Underhood Bussing Fuse Block-Underhood Bussing DLC, Ground and Power BCM Fuses; ECM, GMLAN DEVICES, RPA / H/C SEAT, and SDM/PSIR SW, Fuse Block-Underhood Fuses; ABS/MRRTD, and ACC/TCM DLC, Ground and Power Class 2 GMLAN Fuse Block-Underhood Fuses; ABS, AMP, BATT2, COOLFAN, ECM/TCM, HORN, HVAC, and MRRTD DLC, Ground and Power
Figure 2:	12-Volt and 5-Volt Reference Bussing Master Electrical Component List Engine Control Module Description Low Reference Bussing DLC, Ground, MIL, and Power Engine Controls Schematic Icons

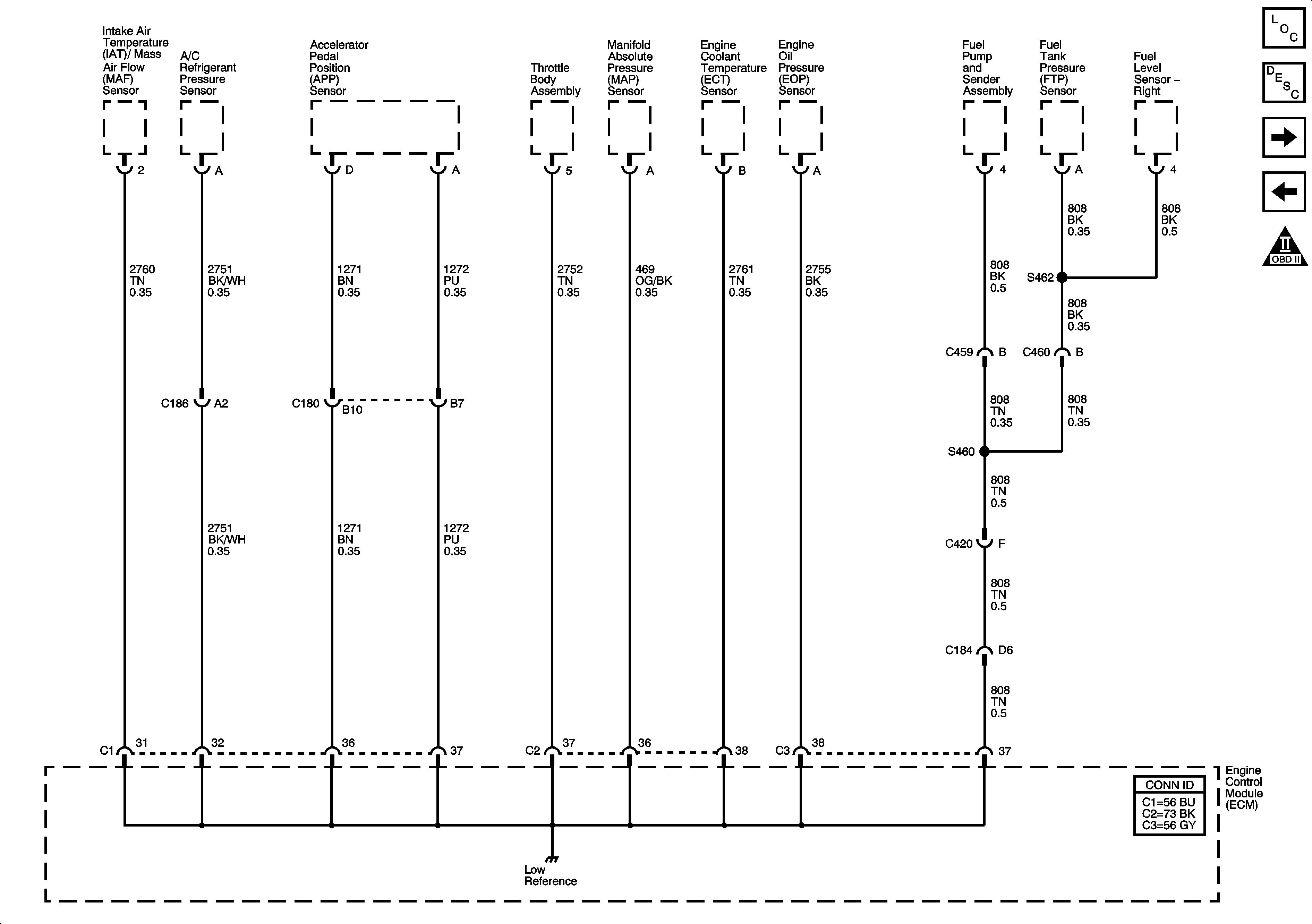

Figure 3:	Low Reference Bussing Master Electrical Component List Engine Control Module Description Engine Data Sensors-Pressure Temperature, MAF, VSS, and Brake Travel 12 Volt and 5 Volt Reference Bussing Engine Controls Schematic Icons

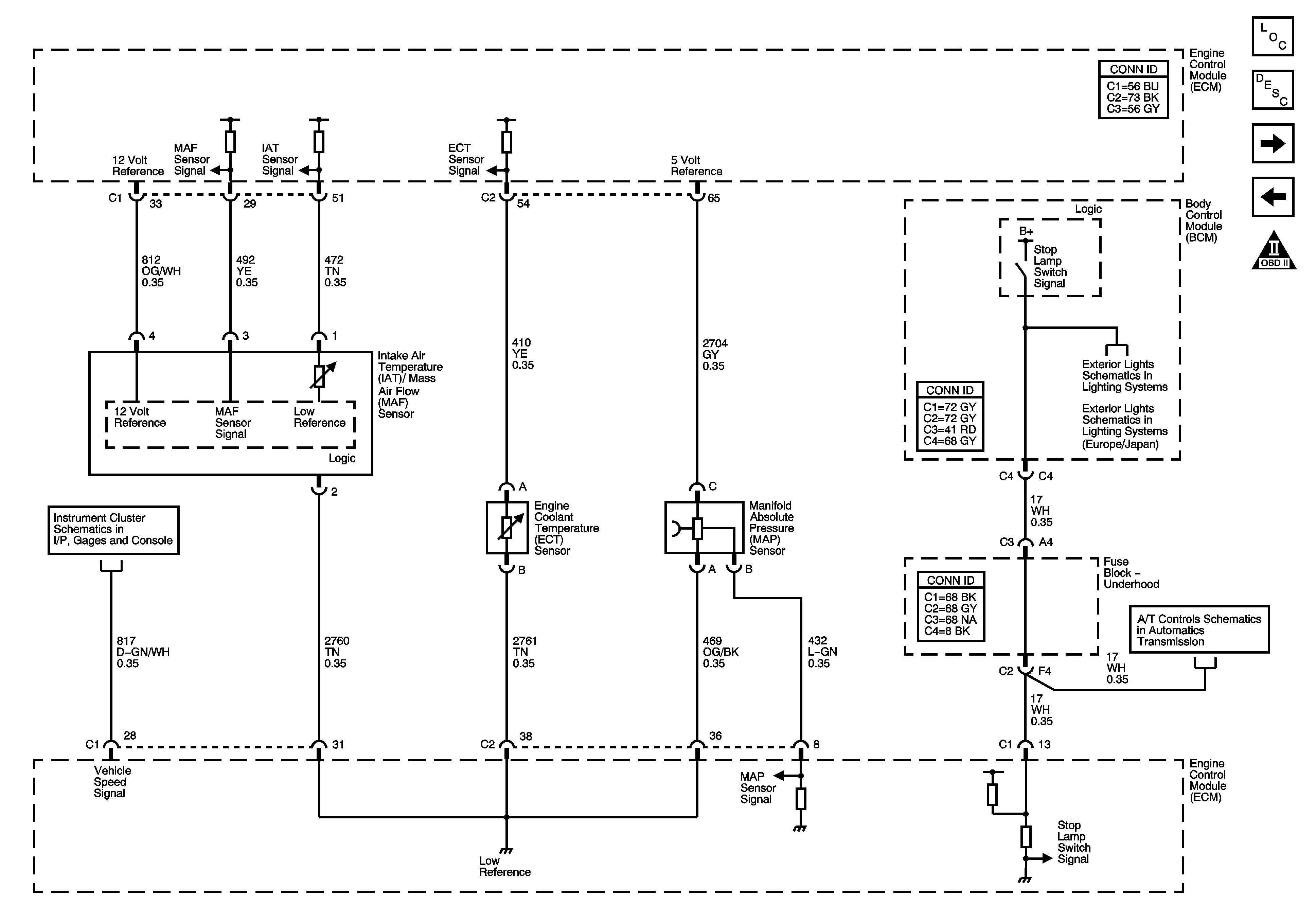

Figure 4:	Engine Data Sensors-Pressure, Temperature, MAF, VSS, and Brake Travel Master Electrical Component List Air Intake System Description Oxygen Sensors Low Reference Bussing Engine Controls Schematic Icons Gages Stoplamps Stoplamps Shift Lever
Figure 5:	Engine Data Sensors-Oxygen Sensors Master Electrical Component List Engine Control Module Description Electronic Throttle Controls Engine Data Sensors-Pressure Temperature, MAF, VSS, and Brake Travel Engine Controls Schematic Icons

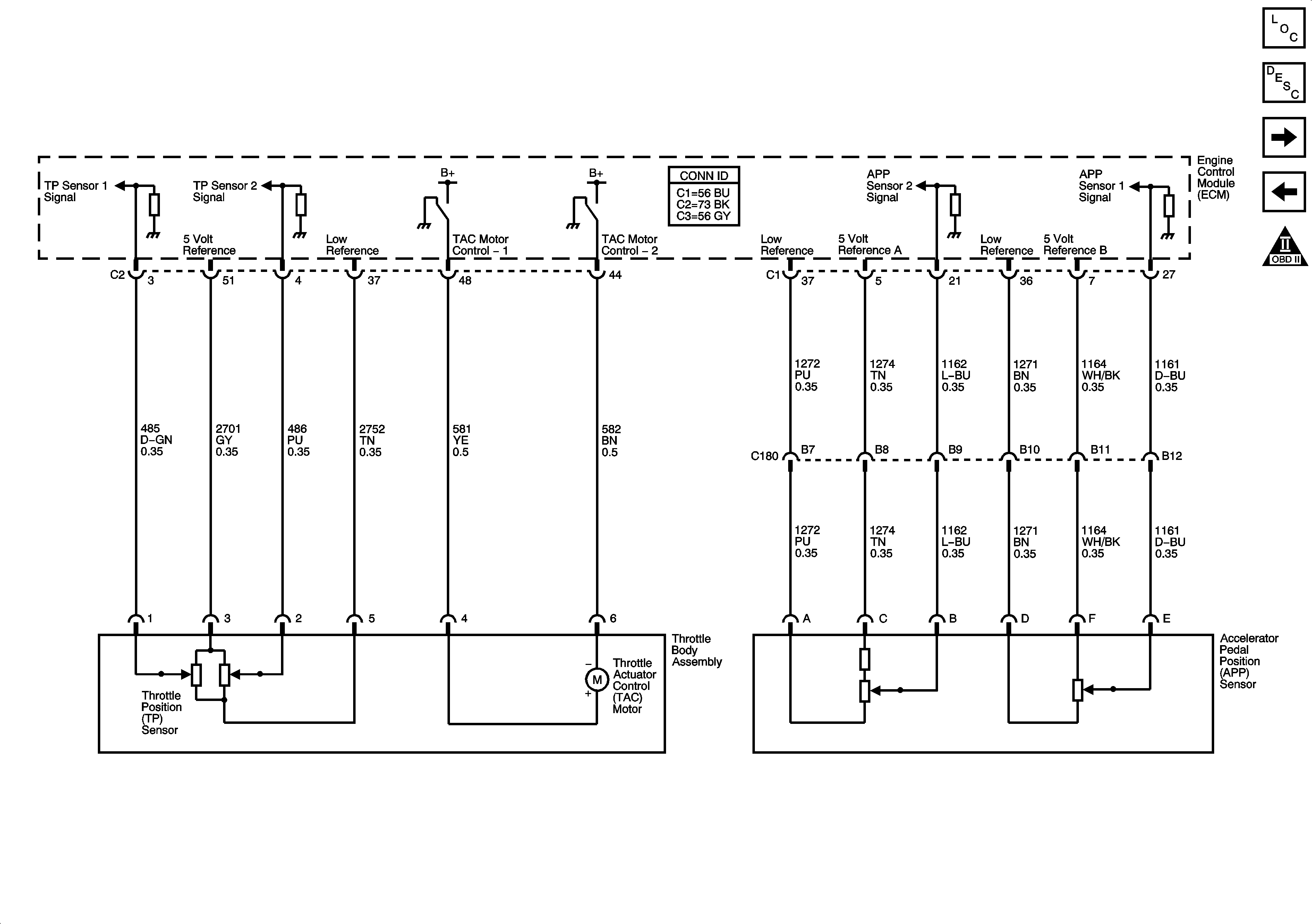

Figure 6:	Engine Data Sensors-Electronic Throttle Controls Master Electrical Component List Throttle Actuator Control (TAC) System Description Ignition System-Bank 1 Oxygen Sensors Engine Controls Schematic Icons

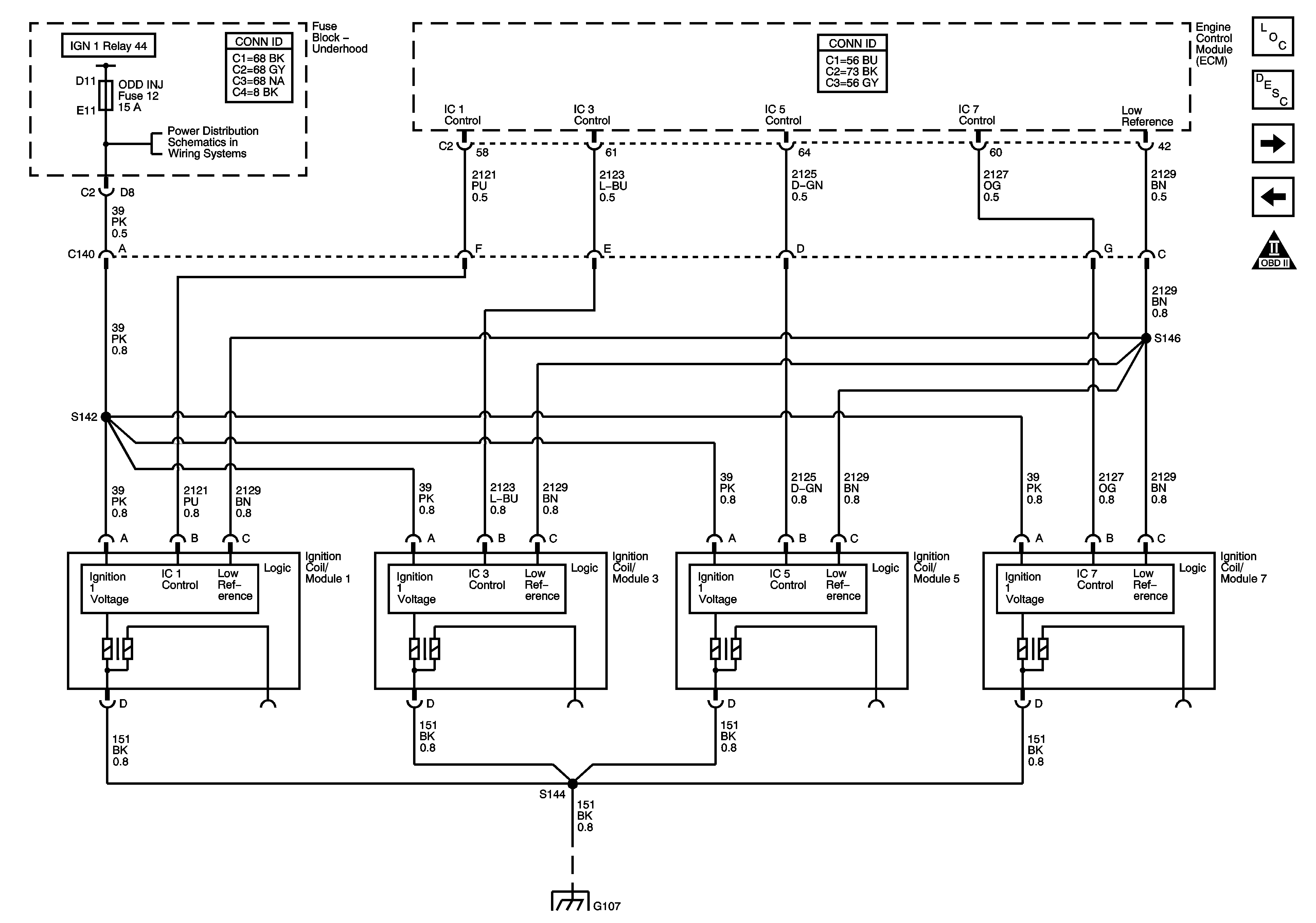

Figure 7:	Ignition System-Bank 1 Master Electrical Component List Electronic Ignition (EI) System Description Ignition System-Bank 2 Electronic Throttle Controls Engine Controls Schematic Icons Fuse Block-Underhood Bussing

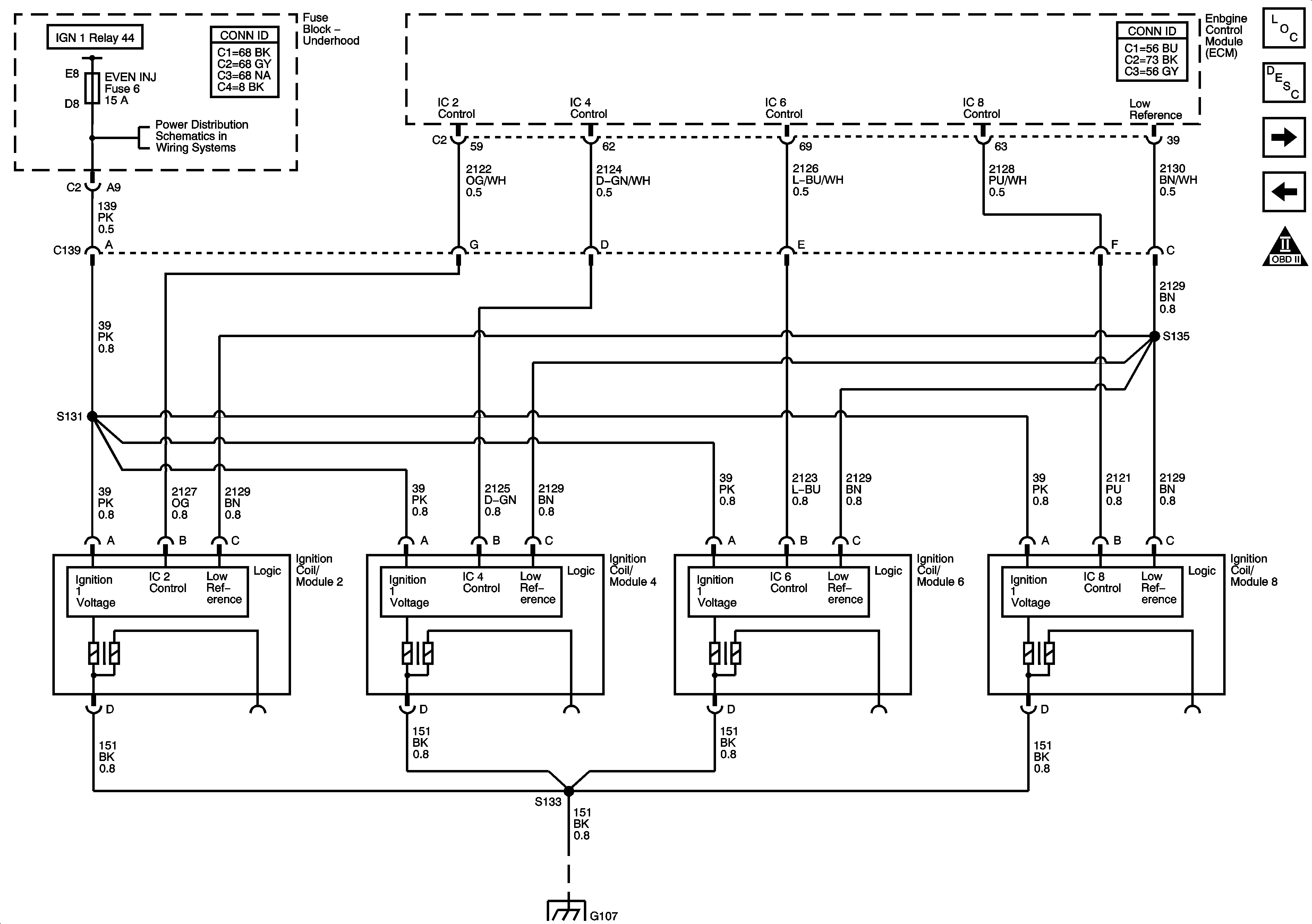

Figure 8:	Ignition System-Bank 2 Master Electrical Component List Electronic Ignition (EI) System Description Ignition Controls-CKP and KS Sensors Ignition System-Bank 1 Engine Controls Schematic Icons Fuse Block-Underhood Bussing

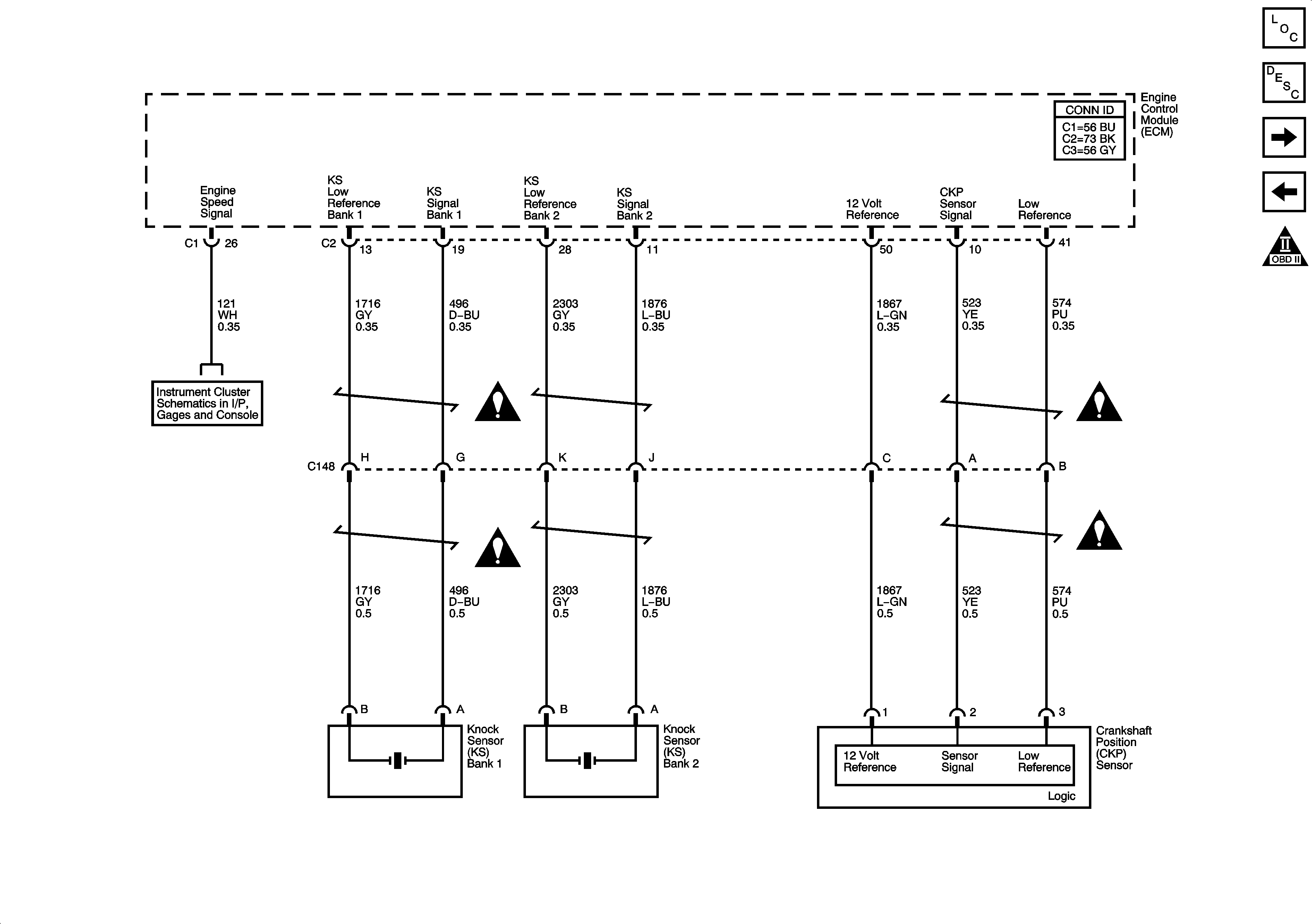

Figure 9:	Ignition Controls-CKP and KS Sensors Master Electrical Component List Knock Sensor (KS) System Description CMP Sensors and Solenoids Ignition System-Bank 2 Engine Controls Schematic Icons Engine Controls Schematic Icons Engine Controls Schematic Icons Engine Controls Schematic Icons Engine Controls Schematic Icons Gages
Figure 10:	Ignition Controls-CMP Sensors and Solenoids Master Electrical Component List Camshaft Actuator System Description Fuel Controls-Fuel Injectors and Fuel Pump Controls Ignition Controls-CKP and KS Sensors Engine Controls Schematic Icons

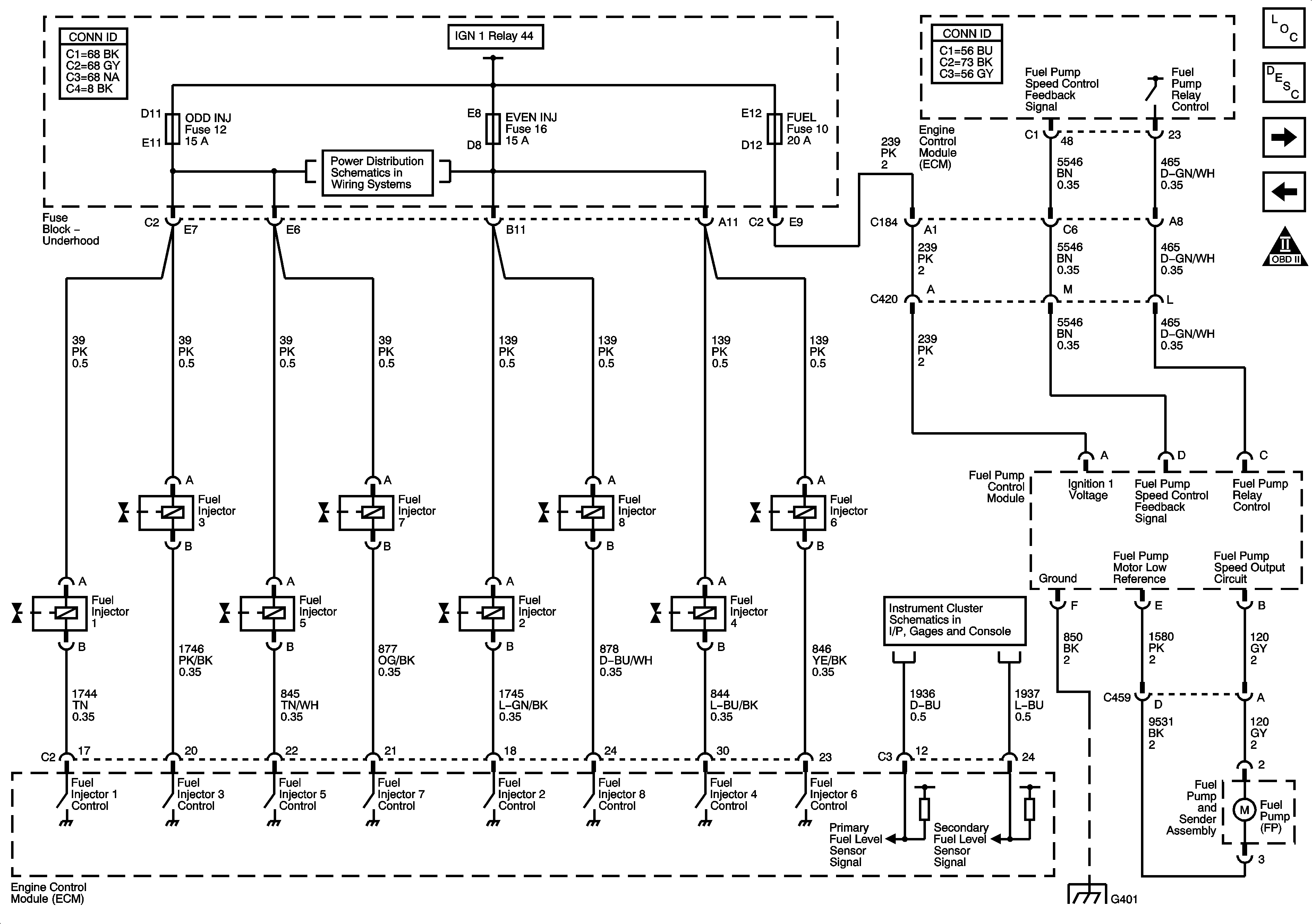

Figure 11:	Fuel Controls-Fuel Injectors and Fuel Pump Controls Master Electrical Component List Fuel System Description EVAP Controls CMP Sensors and Solenoids Engine Controls Schematic Icons Fuse Block-Underhood Bussing Gages

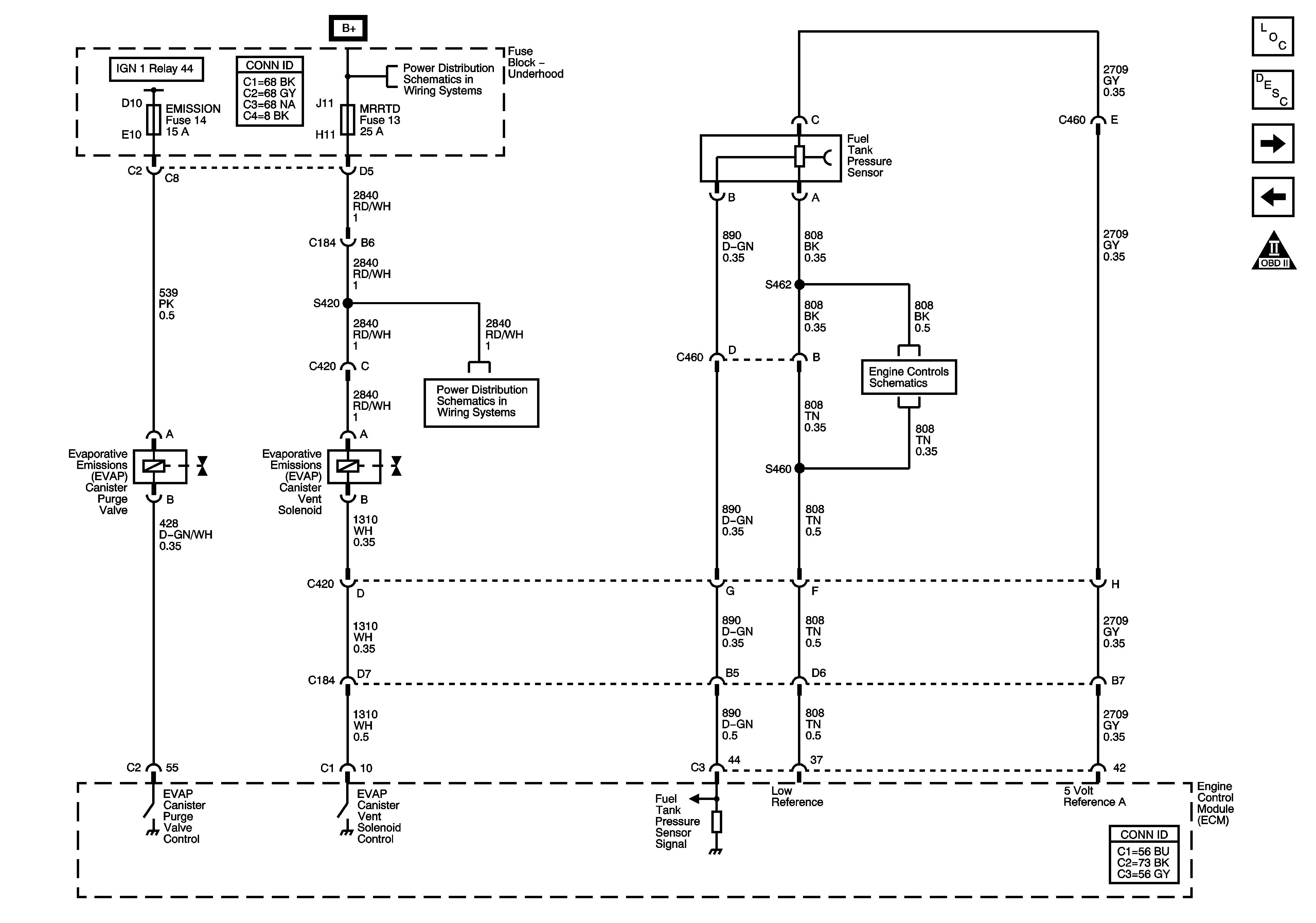

Figure 12:	Fuel Controls-EVAP Controls Master Electrical Component List Evaporative Emission Control System Description Controlled/Monitored Subsystem References Fuel Controls-Fuel Injectors and Fuel Pump Controls Engine Controls Schematic Icons Fuse Block-Underhood Bussing Fuse Block-Underhood Bussing Low Reference Bussing

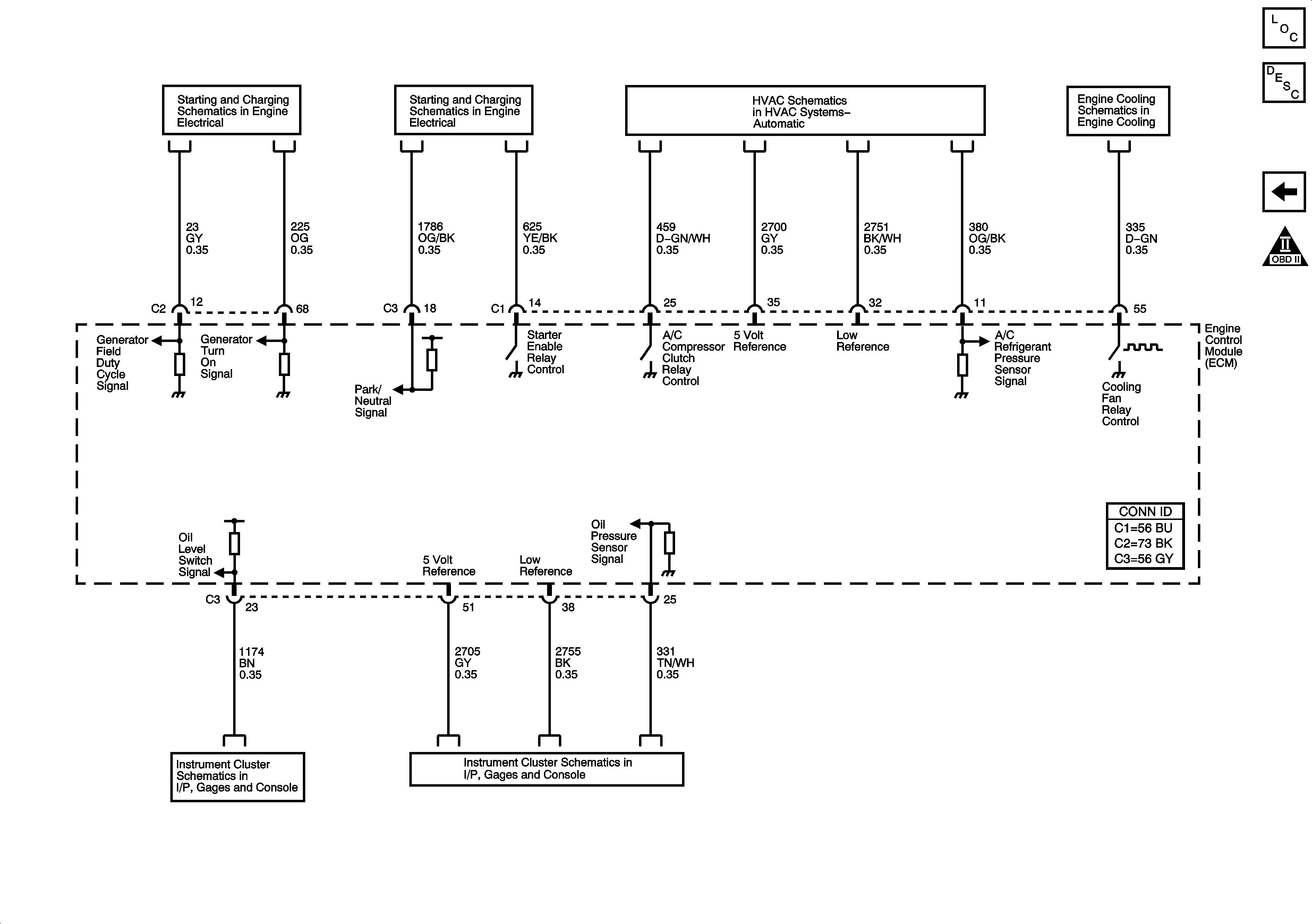

Figure 13:	Controlled/Monitored Subsystem References Master Electrical Component List Engine Control Module Description EVAP Controls Engine Controls Schematic Icons Charging Cranking Compressor Controls Engine Cooling Schematics Messages Gages
